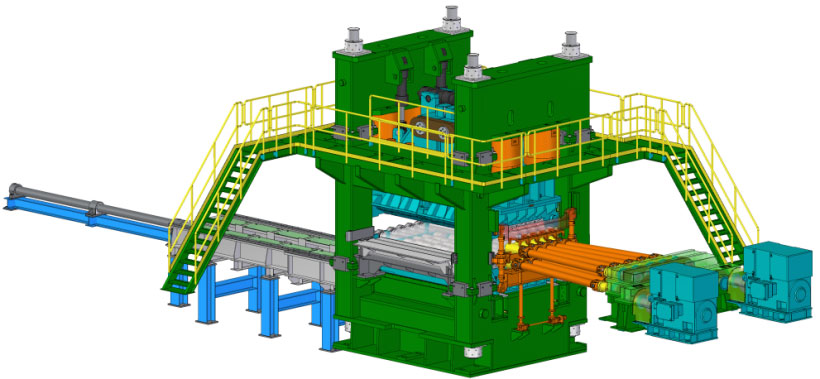

Ablyy’s Fifth-generation High-Performance High-Thrust Leveler is a world-leading 6,000-ton class leveling solution incorporating over a dozen proprietary technologies.

♦ Pre-Stressed Interlocking Frame:

Enhances frame dynamic stiffness by 300% compared to conventional pre-stressed designs.

Features large-section M260-M280 pre-stressed tie rods locked via interlocking mechanisms, ensuring sustained rigidity and superior straightening performance.

♦ Ultra-High Density Backup Roll System:

Boosts roll system load capacity by 250%-350%, achieving over 4,600 tons of allowable straightening force for 3,500mm hot levelers.

Doubles both load capacity and service life through increased backup roll rows and 200% higher roll surface contact.

♦ Independent Side Roll Adjustment:

Maintains plate flatness with load-bearing, independently controlled entry/exit side rolls.

Real-time adjustment feedback on operator panels with safety limits and protective functions.

♦ Hydraulic Rotary Clamping Device:

Enables rapid roll change via bidirectional telescopic rotation with integrated hydraulic locking.

Provides uniform high clamping force for secure, efficient roll engagement/disengagement, minimizing downtime.

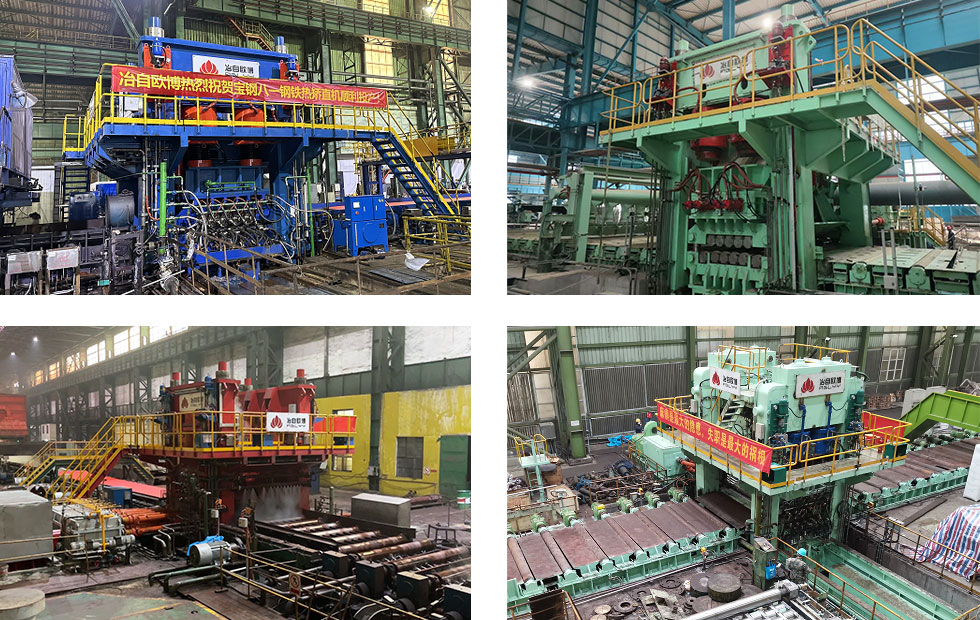

Application Showcase
